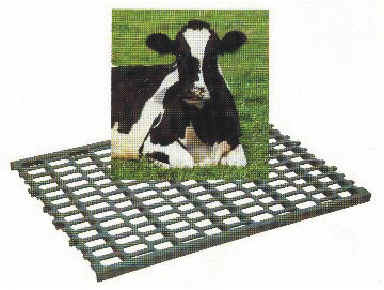

SCHONLAU HEXA Dairy Slats

Manufactured of FERROCAST- cast iron

· For holding areas in milking parlors

· For washing gutters in free-stalls

· For liquid flow gutters

· For covering gutter cleaners

· For all applications where a large void area is required

Prevent cows from costly injuries when jumping over stable cleaner gutters

slats designed to cover over existing 18" gutter for stable cleaners
¾" support lip on each side assures easy installation

Save time and money in flow gutter systems

cleaning and bedding time practically eliminated
gutter cleaner, cost of straw - a thing of the past

Durable, safe and strong because of highest quality material

manufactured of extreme durable FERROCAST
SCHONLAU is manufacturing cast-iron slats for over 34 years

Save against any potential injury to cows and calves

No sharp edges or corners - no hoof or udder injury
Protect cows from hurting their feet when jumping in the gutter
Patented hexagonal shaped openings assure good footing against slipping while creating a maximum on void area (in excess of 50%) for solids to clear

Note: Length dimension is across gutter

*Part No.*	*Dim. [mm]* *l x w*	*Dim. [inch]* l x w	*Bar-width [mm]*	*Opening [mm]*	*Support-height [mm]*	*Support-width [mm]*	*Weight [Kg]*
*50 005*	457 x 1220	18 x 48	20	38 x 90	8	20	30
*50 015*	800 x 1000	31 x 40	20	38 x 90	40	30	50
*50 025*	800 x 1200	31 x 48	20	38 x 90	40	30	57
*50 030*	900 x 1000	36 x 40	20	38 x 90	40	30	53
*50 035*	900 x 1200	36 x 48	20	38 x 90	40	30	63
*50 040*	1000 x 1000	40 x 40	20	38 x 90	40	30	55
*50 045*	1000 x 1200	40 x 48	20	38 x 90	40	30	66
